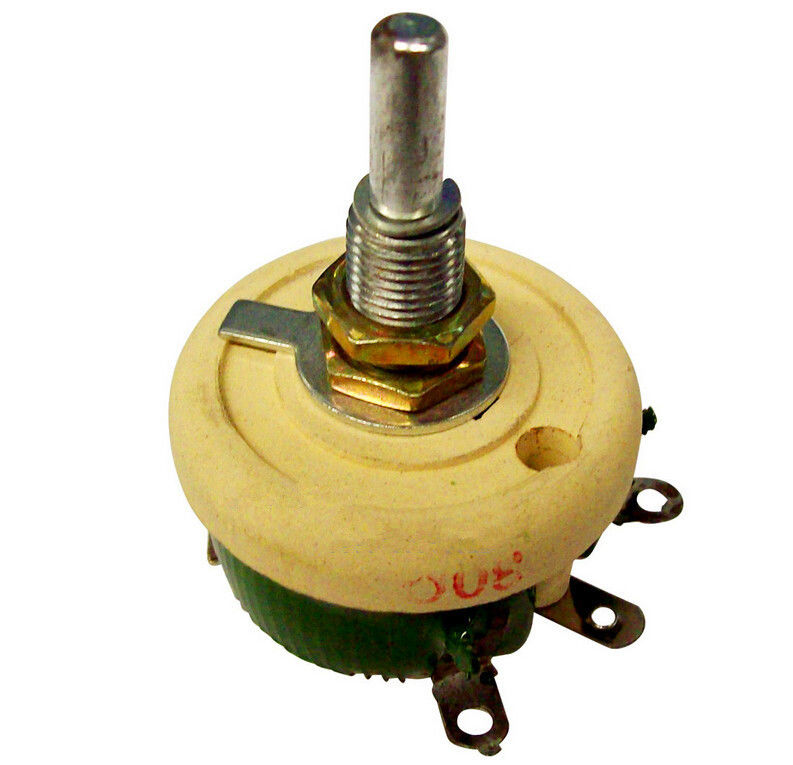

BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance
  • BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance
  • BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance
  • BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance
  • BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance
  • BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance
  • BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance
BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance

BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance

Lieu d'origine Sichuan, Chine
Nom de marque Bonens
Numéro de modèle Résistance BCI 25W
Détails de produit
Chaîne de résistance:
1Ω-10KΩ
Tolérance à la résistance:
± 10%
Cote de puissance:
25W
Voltage maximal:
380V AC / 220V DC
Tension d'isolation:
2500V
Augmentation de la température:
≤300K (25-100W), ≤350k (≥150W)
Voyage de glissement:
280 ± 5 ° (25-50W), 300 ± 5 ° (≥ 100W)
Déviation linéaire:
≤ ± 10%
Cycles de rotation:
5000 semaines
Résistance à l'isolation:
≥ 100mΩ (500 VDC)
Température maximale:
350℃
Voyage mécanique:
300° ± 10°
Température de fonctionnement:
-55°C à 350°C
Résistance aux vibrations:
10 ~ 200 Hz, 40m / s²
Résistance terminale:
≤0,2% ou 1Ω
Mettre en évidence:

25W variable resistor

,

1Ω-10KΩ variable resistor

,

variable resistor with ±10% tolerance

Conditions de paiement et d'expédition
Quantité de commande min
100
Description de produit
BC1 25W Variable Resistor Rheostat
BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance 0 BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance 1 BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance 2 BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance 3
The BC-1 wire wound resistor features high resolution capability with a wide resistance range. Designed for durability, it offers excellent heat resistance, humidity resistance, and wear resistance characteristics. Suitable for voltage and current adjustment in power equipment and circuits not exceeding 380V AC or 220V DC.
Technical Specifications
  • Maximum working voltage: 1000V with 2500V insulation voltage
  • Temperature rise: 25-100W models ≤300K; ≥150W models ≤350K
  • Sliding travel: 25-50W models: 280±5°; ≥100W models: 300±5°
  • Linear deviation: Not greater than ±10% across entire travel
  • Rotation durability: 5,000 cycles with ≥90% travel
  • High temperature test: 40°C for 6 weeks with insulation resistance <1.5mΩ
The BC1 series of rotor-arm sliding wire porcelain disk variants are designed for voltage and current adjustment in industrial electrical equipment up to 500 volts. The resistor uses high-temperature enamel-coated resistance wire wound on a ceramic skeleton, with a sliding contact mechanism for variable resistance. The unit features a protective metal enclosure with handwheel operation.
Technical Parameters
ELECTRICAL CHARACTERISTICS ENVIRONMENT CHARACTERISTICS
Standard resistance range 1Ω~5KΩ Temperature range -55℃~350℃
Resistance tolerance ±10% Vibration 10~200HZ,40m/S², 3h△R≤±3%R
Terminal resistance ≤0.2% or 1Ω Temperature cycling -55°C,30min to 85°C,30min △R<+3%R,R1>500MΩ
Insulation resistance ≥100mΩ(500Vdc) Humidity 40±2°C,RH:95%-98% 48h△R≤±3%R,R12100MΩ
Maximum temperature 350℃ Load durability R≤1KΩ,5000 cycles R≤1KΩ, 1000 cycles△R≤±5%R
Mechanical travel 300°±10° Shock resistance 60~100 times/min, 150m/s²,4000 times
Applications
Suitable for telecommunications, railway transportation, electrical equipment, medical devices, industrial machinery, and low-frequency AC/DC electrical equipment requiring voltage/current regulation or adjustable load resistance.
Product Dimensions
BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance 4 BC1 25W Variable Resistor 1Ω-10KΩ ±10% Tolerance 5
Frequently Asked Questions
How can I place an order?
You can contact us by email about your order details, or place order online.
How can I pay?
After confirming our PI, we will request payment via T/T, Paypal, or Western Union.
What's the order procedure?
We discuss order details via email, issue a PI for confirmation, then require prepayment before production (7-15 days lead time). Before completion, we confirm shipment details and balance payment.
How do you handle defective products?
We replace defective items or credit the customer, typically in the next shipment.
How do you ensure product quality?
We conduct spot inspections during production and finished product inspections before shipment.
