high power wirewound resistor

Résistance de freinage à coque en aluminium de 1 000 W avec une plage de 1 Ω à 30 KΩ et une tolérance de ± 5 %. Comprend une construction bobinée, un coefficient de température de 150 ppm et des certifications dont ISO9001, TUV, RoHS. Idéal pour l'automatisation industrielle, le freinage énergétique et les applications lourdes.

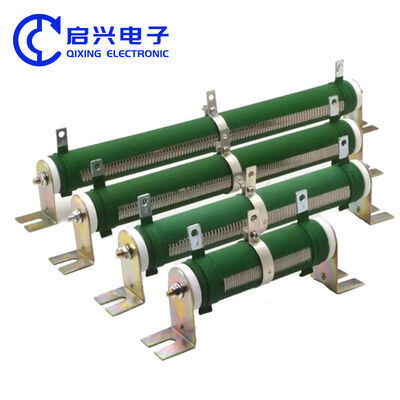

Product Description RX20 wirewound resistor RX20 is coated with painted wire-wound resistors to insulate and withstand high temperature, with high power, strong overload resistance, and high voltage resistance (refers to the pressure between the electrode and the mounting bracket). 1. Rated power: 10W~6KW 2. Working voltage:

01 PRODUCT DESCRIPTION RX20 wirewound resistor RX20 wirewound resistor is a top-notch device manufactured by Yageo, providing a highly reliable solution for a variety of applications. This device has a case size of 7.5mm x 10mm and is designed to be soldered onto circuit boards, with a lead length of 20mm. The RX20 resistor features a through hole mounting type, making it easy to install and maintain. With its superior performance and reliable construction, the RX20 device is

Product Description High Power 3KW Ripple Braking Resistor Painted wirewound Resistor Namebraking resistorModelRXG20Performancehigh powerShapeCylindrical ceramic tubeMaterialWirewoundRated power3000 WResistance1ohms~5K ohmsResistance tolerance±5%DiameterD=80mmLengthL1=430mmMounting bracketsIncludingNon-standard sizeCan be customizedAdjustable typeCan be offered Packing & Delivery Company Profile Sichuan Qixing Electronics CO.,LTD specialize in potentiometers, resistors and

product name: BC1 American High Power Disk Variable Disc Adjustable Resistance Sliding Rheostat 25W 50W 100W 500W product description: 1.BC1 High power wirewound sliding rheostat are wound with chromium-alloy wire as a resistor element. 2.The entire component is coated non-flammable and high-temperature resin exception for the slide contact surface. 3.After cooling and drying, insulation is applied through a high-temperature process. Installed centered roating adjuster

Product features: RX20 High Power Ceramic Tubular Aging Discharge Load Test Wire Wound Resistor 25W 50W 100W 150W 200W Specifications: Power range 10W-10000W. Voltage range- 0.5KV-10KV. Resistance Range 1R-1KR. Pressure- AC2500V / 1min50Hz. IP rating IP00. Rated temperature- 375 ℃, short-term / repeat 40% ED. Thermal equilibrium time constant τ = 200s. Advantages High voltage. Packing-- carton packaging. Disadvantages poor shock resistance Applications: simulated loads,

RI80 5W High Frequency Non-inductive Glass Glaze High Voltage Resistor Technical Specifications Test items Testing method Performance requirements Rapid changes in temperature Lower category temperature - room temperature - upper category temperature - room temperature, 5 cycles each limit temperature is kept 30min ΔR≤ ± (1% R + 0.05Ω) Climatic sequence Dry heat - Damp heat, cyclic - cold - Low pressure - cycle heat - DC load DC voltage is applied Length 1min ΔR≤ ± (5% R + 0

Aluminum Housing Resistor with Flange Mount RIG Series RIG RF Resistance, Microstrip Resistor, Microwave Attenuator BONENS high power RF resistor available in 1000W, 2000W, 800W, 500W, 250W, 100W, 60W, 40W, and 30W flange resistor models with 50Ω and 100Ω options. Features: Small size with high power capacity Stable and reliable performance Easy installation Electrical Characteristics Range of nominal resistance 1Ω-500Ω Resistance tolerance ±5% Frequency range 0~2GHz Standing

RX24 150w 6RJ Gold Aluminum Housed Wirewound Resistors for automotive LED lights describe: RX24 gold resistors have the characteristics of high power, small size, strong overload capability, solid structure, and high reliability; they are widely used in power supplies, frequency parameter: Rated power range: 5W~50W Operating voltage range: 100MΩ △R/R≤±0.5% IEC60115-1 4.6 Insulation withstand voltage UN,60S,I≤1mA △R/R≤±1% IEC60115-1 4.7 Durability Min(UP,UR),1.5H-ON,0.5H-OFF
